Compressed air filters
Reliable and easy to maintain

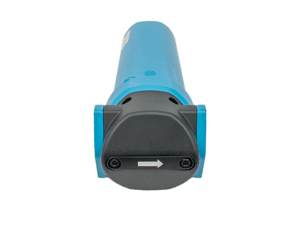

Compressed air filters
Pressure gauge
Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Aenean commodo ligula eget dolor.
Prefilters - 3 micron
A pre-filter is a sieve made of braided material or pressed materials such as sintered bronze or sintered plastic. These pre-filters can filter out particles down to approximately 3 microns. For many applications this is sufficient and system damage or crashes are no longer to be expected.
| Item | Flow | Connection | Filter element | Data sheet |
|---|---|---|---|---|
| NA-F0021-P | 570 l/min | 1/2" BSPP | NA-F0021-PE | Download data sheet |
| NA-F0046-P | 1300 l/min | 1/2" BSPP | NA-F0045-PE | Download data sheet |
| NA-F0070-P | 2000 l/min | 3/4” BSPP | NA-F0070-PE | Download data sheet |
| NA-F0100-P | 2800 l/min | 3/4” BSPP | NA-F0100-PE | Download data sheet |
| NA-F0125-P | 3500 l/min | 1” BSPP | NA-F0125-PE | Download data sheet |
| NA-F0181-P | 5100 l/min | 1” BSPP | NA-F0180-PE | Download data sheet |
| NA-F1325-P | 22083 l/min | 2” BSPP | NA-F1325-PE | Download data sheet |
Fine filters (micro filters) - 1 micron
Fine filters are constructed from several layers of filter material. With this type of filter, air can be cleaned to approximately 1 micron. We recommend installing a pre-filter to protect the fine filter.
| Item | Flow | Connection | Filter element | Data sheet |
|---|---|---|---|---|
| NA-F0021-M | 570 l/min | 1/2" BSPP | NA-F0020-ME | Download data sheet |
| NA-F0046-M | 1300 l/min | 1/2" BSPP | NA-F0045-ME | Download data sheet |
| NA-F0070-M | 2000 l/min | 3/4” BSPP | NA-F0070-ME | Download data sheet |
| NA-F0100-M | 2800 l/min | 3/4” BSPP | NA-F0100-ME | Download data sheet |
| NA-F0125-M | 3500 l/min | 1” BSPP | NA-F0125-ME | Download data sheet |
| NA-F0181-M | 5100 l/min | 1” BSPP | NA-F0180-ME | Download data sheet |
| NA-F1325-M | 22083 l/min | 2” BSPP | NA-F1325-ME | Download data sheet |
Ultra-fine filters (or sub-micron filters) - 0.01 micron
Ultra-fine filters consist of multiple layers of sub-micron fiber cloth. This allows very small particles, water droplets and oil mist (aerosols) down to 0.01 microns to be filtered out of the air. These filters should always be used in combination with a fine filter as pre-filter. With an ultra-fine filter, the oil content in the air can be reduced to 0.01 mg/m³.
| Item | Flow | Connection | Filter element | Data sheet |
|---|---|---|---|---|
| NA-F0021-H | 570 l/min | 1/2" BSPP | NA-F0020-HE | Download data sheet |
| NA-F0046-H | 1300 l/min | 1/2" BSPP | NA-F0045-HE | Download data sheet |
| NA-F0070-H | 2000 l/min | 3/4” BSPP | NA-F0070-HE | Download data sheet |
| NA-F0100-H | 2800 l/min | 3/4” BSPP | NA-F0100-HE | Download data sheet |
| NA-F0125-H | 3500 l/min | 1” BSPP | NA-F0125-HE | Download data sheet |
| NA-F0181-H | 5100 l/min | 1” BSPP | NA-F0180-HE | Download data sheet |
| NA-F1325-H | 22083 l/min | 2” BSPP | NA-F1325-HE | Download data sheet |
Activated carbon filter
Activated carbon filters are able to remove gaseous substances such as hydrocarbons, fragrances and flavors from the air. Residual oil content can be reduced to 0.003 mg/m³.
| Item | Flow | Connection | Filter element | Data sheet |
|---|---|---|---|---|
| NA-F0021-C | 570 l/min | 1/2" BSPP | NA-F0020-CE | Download data sheet |
| NA-F0046-C | 1300 l/min | 1/2" BSPP | NA-F0045-CE | Download data sheet |
| NA-F0070-C | 2000 l/min | 3/4” BSPP | NA-F0070-CE | Download data sheet |
| NA-F0100-C | 2800 l/min | 3/4” BSPP | NA-F0100-CE | Download data sheet |
| NA-F0125-C | 3500 l/min | 1” BSPP | NA-F0125-CE | Download data sheet |
| NA-F0181-C | 5100 l/min | 1” BSPP | NA-F0180-CE | Download data sheet |
| NA-F1325-C | 22083 l/min | 2” BSPP | NA-F1325-CE | Download data sheet |
Filter elements
To maintain compressed air quality standards, filter elements should be replaced with new filter elements every 6/12 months, depending on the environmental conditions and the compressor. Filter element replacement is essential to ensure:
- maintaining high performance
- quality of compressed air in accordance with international standard
- low operating costs
- protecting components and processes downstream.
Failure to replace filter elements will cause an increase in pressure drop through the system and subsequently increase operating costs.
| Part item number | Filter level | Filter function | |
|---|---|---|---|
| Particles | Oil | ||
| P | 3 Micron + moisture separation | For particles down to 3 microns. P is the grade specifically designed to remove dust before and after the dryer | - |
| M | 1 Micron + moisture separation | For particles down to 1 micron. | For concentrations up to 0.1 mg/m3 |
| H | 0,01 Micron + moisture separation | For particles down to 0.01 micron. | For concentrations up to 0.01 mg/m3 |
| C | Oil vapor adsorption | - | Maximum concentration up to 0.003 mg/m3 |
| Combinations | ||
|---|---|---|
| P | General filtration ISO 8573-1:2010;3.*.5 | Liquid and solid particle removal, vacuum pump protection; blowers; refrigerant dryers; pneumatic tools |
| P+M | Fine filtration ISO 8573-1:2010;2.*.2 | Pneumatic tools and drives; air conveyors; compressed air motors; sandblasting; marine storage and cargo; filtration downstream vacuum pump; automotive; refinery; machining; pre-filtration of adsorption dryer (oil-free) |
| P+M+H | Oil-free filtration ISO 8573-1:2010;1.*.1 | air transporters; painting; air packaging; transport; instruments; pressure gauges; pneumatic precision instruments; electronic instruments; pre-filtration of adsorption dryers (oil-free) |
| P+M+H+C* | Critical filtration ISO 8573-1:2010;1.*.0 | medical; pharmacology; membrane production; non-critical breathing air (without removal of CO / CO2); critical instrumentation; removal of odor and taste; production of food and drink or packaging of food and drink; beer production; dairy production |
Use a cyclone filter for optimal results
Cyclonic filter
Use a cyclone filter to separate excess moisture before drying the air with a refrigerated dryer, adsorption dryer or membrane dryer. This protects your compressed air dryer against overload, resulting in a lower drying result or increased energy consumption.
